Dimensions by drawing
Diameter, bend and usable thread length reviewed together.
WT FASTENERS / WHOLESALE & PROJECT SUPPLY
L & J Anchor Bolts
for Foundation Projects
Quote your cast-in anchor package by drawing: dimensions, grade, finish, nuts, washers and project delivery requirements.
Start with the size you know and approximate quantity. Drawings can follow.
L & JBent anchor configurations
By drawingDiameter, thread & bend
Project supplyNuts, washers & packing
01 / PRODUCT SELECTION
Two forms. One precise drawing.
Choose the anchor shape your project specifies. Dimensions, accessories and acceptance requirements belong in the same enquiry.

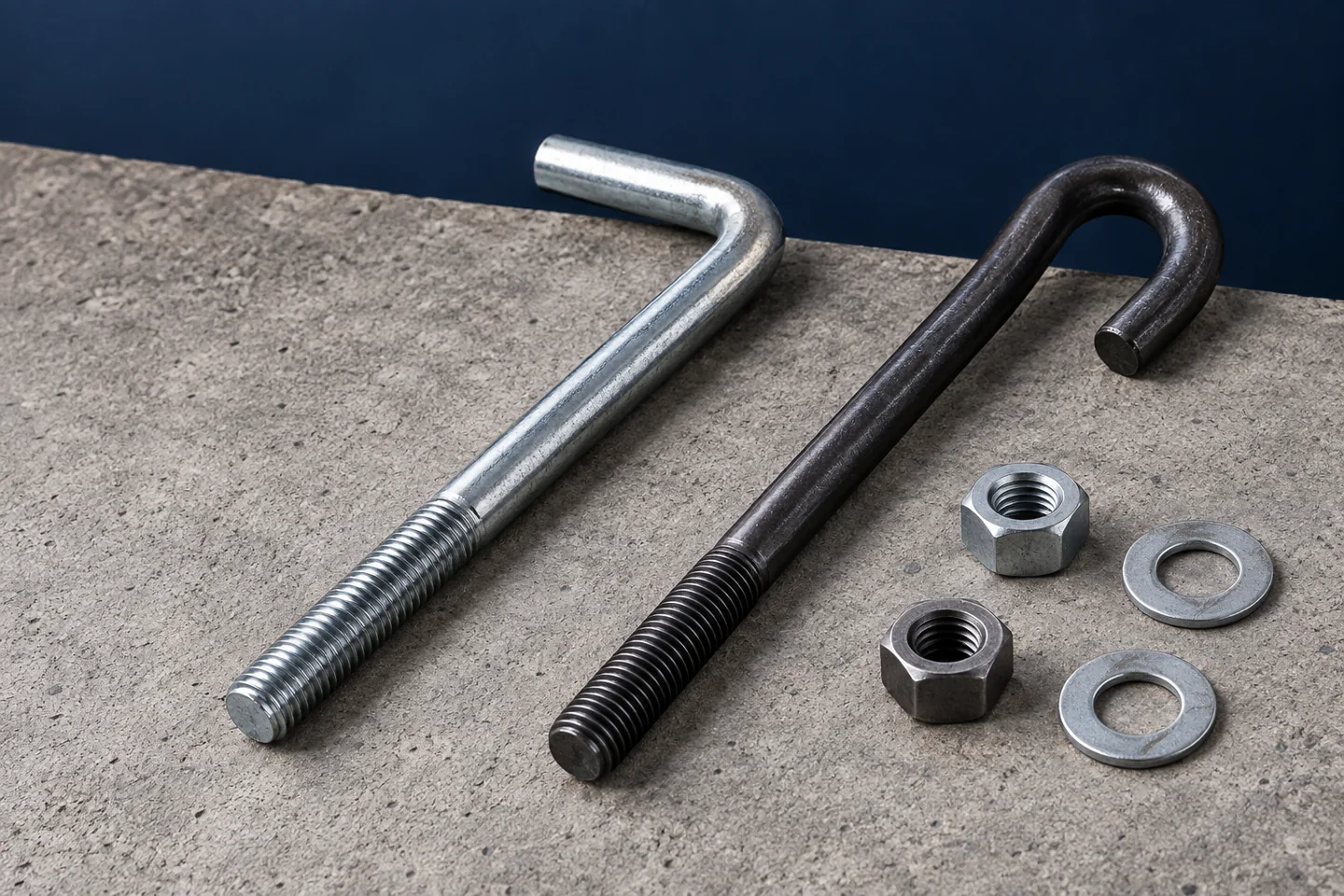

01
L-type / cast-in
L-Type Anchor Bolt
A straight threaded end and an L-shaped anchoring bend.
Quote this product ↗02
J-type / cast-in
J-Type Anchor Bolt
A straight threaded section with an open hooked anchoring end.
Quote this product ↗WT catalogue images. Confirm the exact product dimensions, material and finish with your quotation.
02 / GET THE DETAILS RIGHT
Quote the whole
anchor assembly.
Start with a dimensioned drawing. We review diameter, length, hook geometry, thread and the required nuts or washers together.
Include embedment, projection and bend dimensions from the approved project design. The illustration does not define a load rating or installation specification.
- Shape & dimensions
- L or J bend; rod diameter, overall length, bend radius and hook dimensions.
- Thread
- Metric or inch designation, pitch and usable thread length.
- Material & grade
- State the project material, property class and required standard. Confirm availability before ordering.
- Finish
- Plain/oiled, zinc plated or hot-dip galvanized options; specify coating requirements.
- Accessories
- List matching nuts, washers and any locating template requirements.
- MOQ & delivery
- Confirmed by drawing, quantity, material and packing. State the project destination and required date.

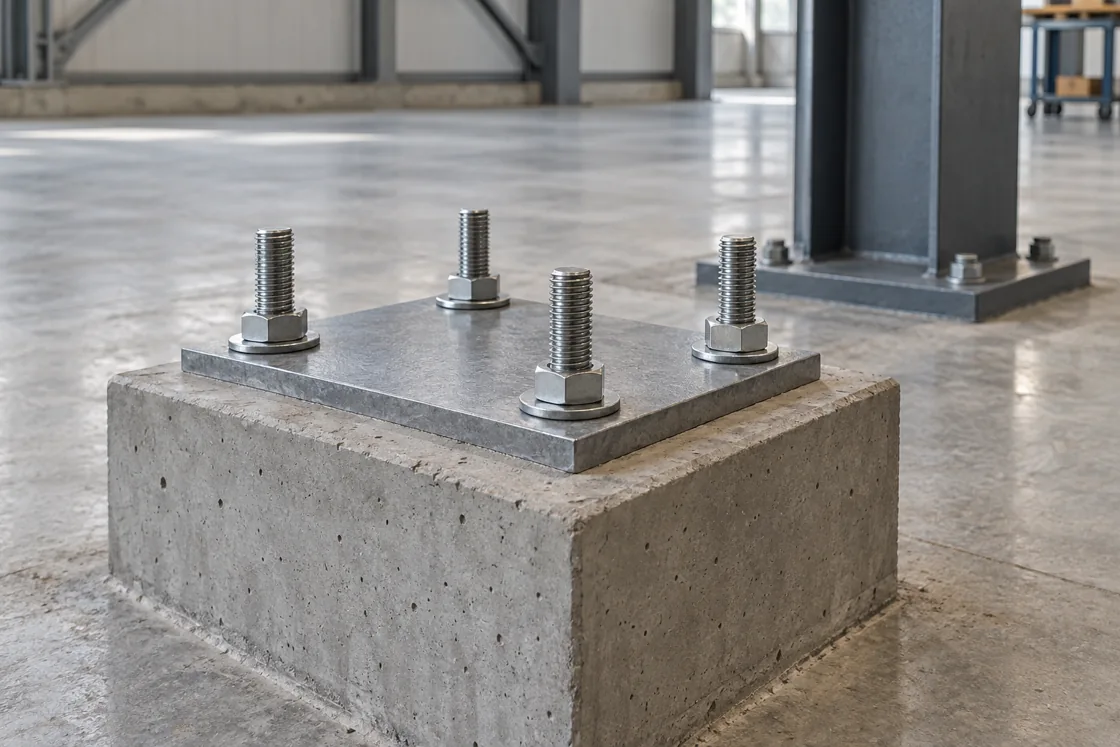

03 / APPLICATION CONTEXT
For your next
foundation package.
Coordinate anchor procurement with the steelwork or equipment base drawing. Keep geometry, finish, accessories and the delivery schedule together.
- Steelwork foundations
- Equipment bases
- Support structures
The project engineer specifies embedment, spacing, edge distance and structural acceptance requirements.
Discuss your application04 / ORDER WITH THE DETAILS AGREED
Plan the shipment around the project.
Specify bundled sets, woven bags, wooden cases, pallets or steel frames as needed. Include labels and accessory quantities so the packing scope is clear.
Matching supply scope
List nuts, washers and template requirements in your RFQ.
Clear project quotation
MOQ, packing and delivery confirmed for your order.
YOUR RFQ → A CONFIRMED SUPPLY SCOPE
Start with what you know. Confirm the rest together.
- SpecificationDrawing, dimensions, material and finish
- Order detailsQuantity, accessories, packs and labels
- Delivery scopeDestination, timing and required documents
BEFORE YOU ENQUIRE
A few useful answers.
Are these expansion anchors?
These are cast-in L and J foundation anchor bolts. They are positioned for embedment in a foundation. Expansion and wedge anchors are separate product types.
Can you quote to our project standard?
Send the project standard, grade and drawing when available. You can start with the L or J shape, known dimensions and quantity; the required documents and supply scope are confirmed before order.
How are minimum order and lead time determined?
They depend on dimensions, material, finish, quantity and packing. Include your destination and required date; the quotation confirms MOQ, supply timing and shipping terms.
YOUR NEXT ORDER
Request an Anchor Bolt Quote
Start with the product, the size you know and approximate quantity. Enter your name and either email or phone / WhatsApp. Company, destination and drawing are optional; details can follow.
Cast-in L / J anchor bolts
